CANBed Dual - Arduino CAN Bus Dual-FD Dev Kit based on RP2040

CANBed RP2040 - Arduino CAN Bus RP2040 Dev Kit

CANBed RP2040 is a CAN Bus development board powered by an Raspberry Pi RP2040 chip with a high-performance MCP2515 CAN controller and MCP2551 CAN receiver operating at CAN2.0 protocols in 133MHz.
$15.90
Availability: In stock
SKU
1030018
  • Buy 2 for $14.90 each and save 6%
  • Buy 5 for $13.90 each and save 13%
  • Buy 10 for $12.90 each and save 19%
  • Buy 50 for $11.90 each and save 25%

Arduino CAN Bus Board

CANBed RP2040 is a CAN Bus development board powered by a Raspberry Pi RP2040 chip with a high-performance MCP2515 CAN controller and MCP2551 CAN receiver operating at CAN2.0 protocols in 133MHz. The board contains a flexible CAN interface where it can be used 4-pin terminal or DB9 connector. DB9 connector can be directly used as OBD-II mode by default and the hardware can be configured as CAN open mode as well. Additionally, it has a rich interface in which there is a Micro-USB connector that can be programmed instead of supplying power. It also has I2C, UART, SPI, 3 analogue input interfaces, and 8-digital IO with 2MB of Flash and 264KB of RAM which make it suitable for the most embedded applications.

If you want to use this board to develop OBD related applications, click to get a DB9 to OBD-II cable. We use a flexible way for the CAN interface. You can use 4-pin terminal or DB9 connector. DB9 connector uses OBD-II mode by default. You can also configure CAN open mode on the hardware. The voltage input range of the CAN interface is 9~28V, which can provides a stable 3.3V/1A output.


Part List:

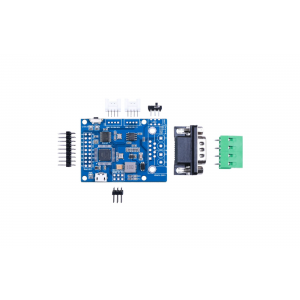

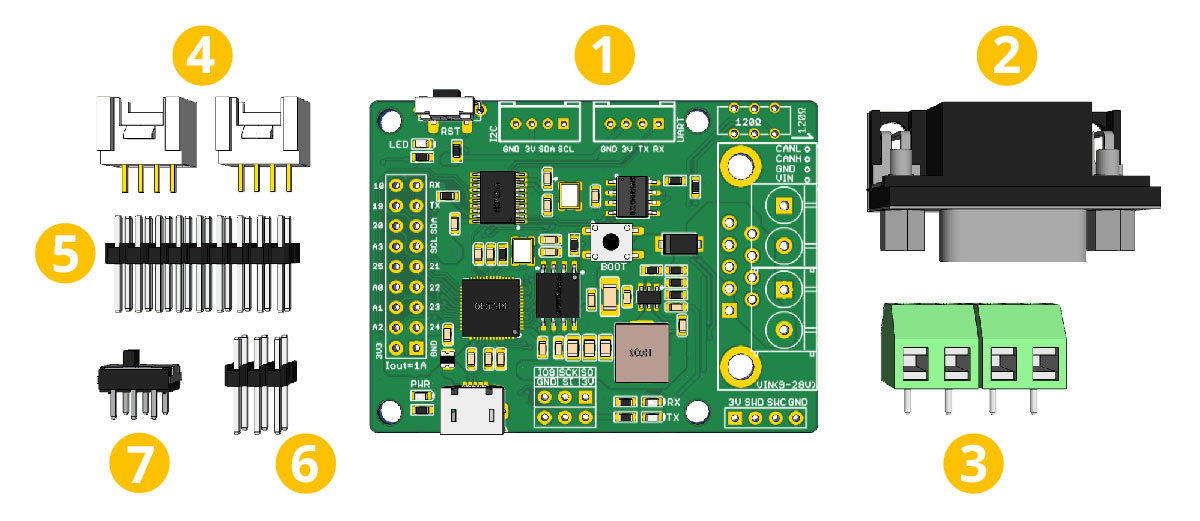

Arduino CAN Bus RP2040 Part List

  • 1.  CANBed RP2040 PCBA x1
  • 2.  Sub-D connector x1
  • 3.  4-pin Terminal x1
  • 4.  HY2.0 4-pin Connector x2
  • 5.  9x2 2.54 Header x1
  • 6.  3x2 2.54 Header x1
  • 7.  6-pin switch x1

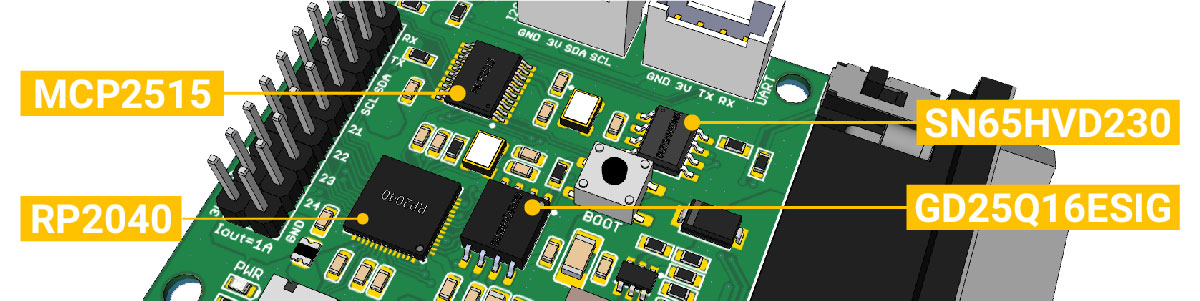

Features:

Arduino CAN Bus RP2040 chip

  • ● Powerful Raspberry Pi RP2040 processor
  • ● Implements CAN V2.0B at up to 1 Mb/s
  • ● Industrial standard 9-pin sub-D connector or 4-pin Terminal
  • ● OBD-II and CAN standard pinout selectable at sub-D connector
  • ● Compatiable with HY2.0 4-pin connector
  • ● SPI interface standard (11 bit), extended (29 bit) data, and remote frames
  • ● Power input from 9~28V

Specifications:

  • ● MCU: Raspberry Pi RP2040
  • ● Clock Speed: flexible clock running up to 133 MHz
  • ● Flash Memory: 2MB
  • ● RAM: 264KB
  • ● Operate Voltage: 9~28V
  • ● Operate Current: 1A
  • ● Input Interface: Sub-D

Pinouts:

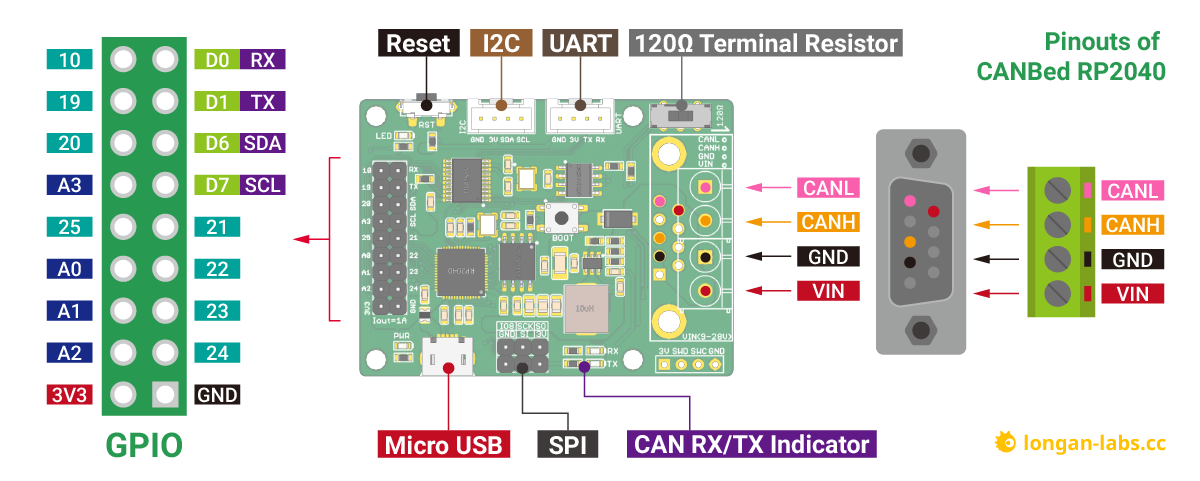

Pinouts of Arduino CAN Bus RP2040


ECCN/HTS:

  • ● HSCODE: 8517629900

References:


PCS:
