Serial CAN Bus Module

The Serial CAN Bus module provides your Arduino with CAN Bus capabilities and allows you to hack your vehicle. It lets you to read and write messages to the CAN Bus. The Serial CAN Bus module can be connected to your Arduino through the on-board Grove connector.

CAN Bus is a messaging protocol system that lets various microcontrollers and sensors within a vehicle to talk to each other. CAN provides long distance, medium communication speed, and high reliability.

The Serial CAN Bus module is based on MCP2515 CAN controller and MCP2551 CAN transceiver provides speed up to 1Mb/s. It also has a terminal block so you can connect to your vehicle’s OBD-II port with two wires.

Features:

• ● UART to CAN Bus communication
• ● Works with Arduino / BeagleBone board / Raspberry Pi or any MCU that supports UART.
• ● Supports with AT commands
• ● Up to 115200 UART baud rate (default 9600)
• ● Up to 1Mb/s CAN Bus baud rate
• ● LED indicators for TX and RX, and power
• ● 4-pin Grove connector
• ● 2-pin screw terminal block
• ● Operating voltage: 3.3/5V
• ● Easy-to-use Arduino library
• ● Small size: 20x40 mm

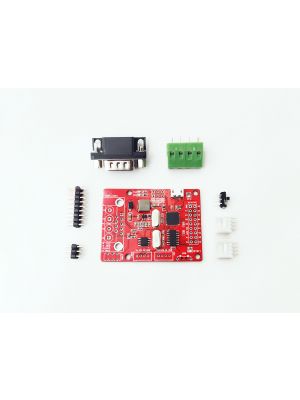

What Is Inside:

Reference:

• ● How to Use
• ● Software Library
• ● Schematics in Eagle File
