CANBed FD - Arduino CAN FD Dev Kit

This CANBed FD adopts MCP2517FD CAN Bus controller with SPI interface and MCP2542FD CAN transceiver to achieve the CAN Bus capability. With an OBD-II converter cable added on and the OBD-II library imported, you are ready to build an onboard diagnostic device.

What's more, there is an Atmega32U4 with Arduino Leonardo bootloader on the board, you can use Arduino IDE to program it easily.

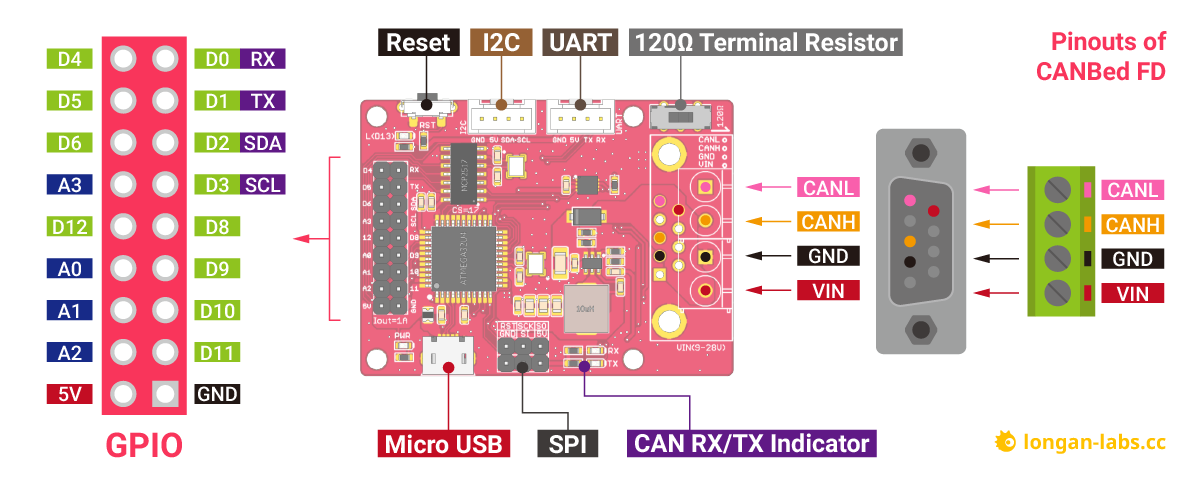

Part List:

• • CANBed FD Board x1
• • Sub-D Connector x1
• • 4PIN Terminal x1
• • 4PIN 2.0 Connector x2
• • 9x2 2.54 Header x1
• • 3x3 2.54 Header x1

Features:

• • Work at CAN FD and CAN 2.0
• • Industrial standard 9pin sub-D connector or 4pin Terminal
• • OBD-II and CAN standard pinout selectable at sub-D connector
• • 2x4pin connector compatable with Grove system
• • SPI interface up to 10 MHz
• • Power input from 7~28V
• • Size: 56x41mm

Specificaton:

• • MCU: Atmega 32U4 (with Arduino Leonardo bootloader)
• • Clock speed: 16MHz
• • Flash memory: 32KB
• • SRAM 2.5KB
• • EEPROM: 1KB
• • Operate voltage: 7~28V
• • Input interface: Sub-D
