MP3 Decoder Board

  • Input voltage: 3.7~5V
  • Support MP3, WMA and WAV
  • Support micro SD card and U-disk
  • Recorder mode
  • EQ: Normal, Class, JAZZ, Rock, Bass, POP, default Normal
$6.49
Availability: In stock
SKU
2080014
  • Buy 5 for $5.84 each and save 10%
  • Buy 10 for $5.52 each and save 15%
  • Buy 50 for $5.19 each and save 20%

This is a player module with a remote control. The module supports three music formats, MP3, WAV and WMV, which can be input via micro SD card or U disk. The module has 6 EQ modes, Normal, class, jazz, rock, bass and pop, which can meet different hearing needs. If you want to DIY a player, this module is a good choice.


Features:

  • •  Input voltage: 3.7~5V
  • •  Support MP3, WMA and WAV
  • •  Support micro SD card and U-disk
  • •  Recorder mode
  • •  EQ: Normal, Class, JAZZ, Rock, Bass, POP, default Normal

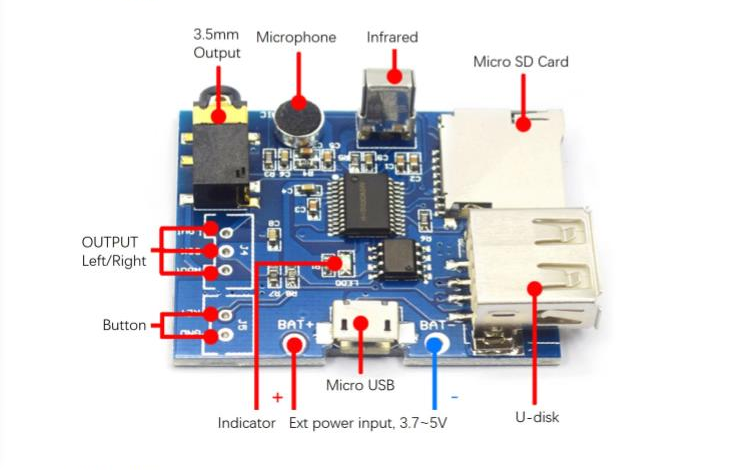

Hardware Overview:



Key Control:

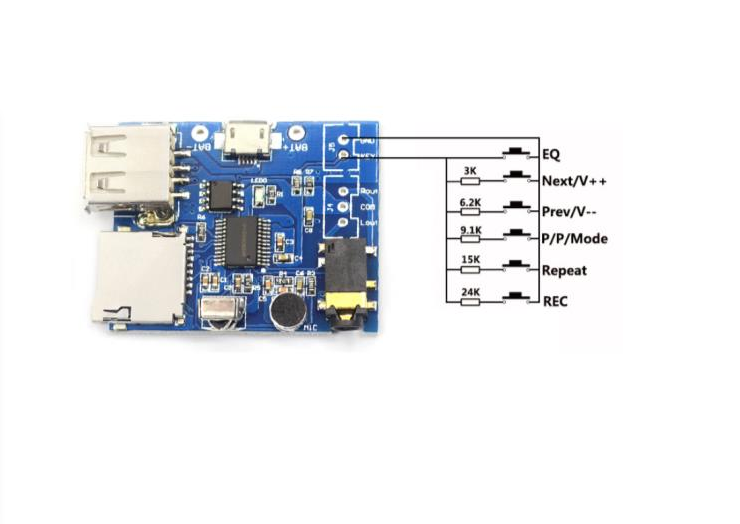

If you want to use key control, you can modify the board, the schematic diagram is as follows:
