Mini-360 DC-DC Adjustable Step-Down Converter

$1.19
Availability: In stock
SKU
2050008
  • Buy 5 for $1.07 each and save 10%
  • Buy 10 for $1.01 each and save 15%
  • Buy 50 for $0.95 each and save 20%

The module can be used to get step-down voltage for the system. It has a wide range of voltage inputs, from 4.75 to 23V, and an output of 1.0 to 17V, with a maximum current of 3A.


Features:

  • • Input voltage: 4.75~23V
  • • Output voltage: 1.0~17V
  • • Output current: 3A(Max), 1.8A(Normal)
  • • Conversion efficiency: 96%
  • • Switch freq: 340KHz
  • • Working temperature: -40℃~85℃
  • • Size: 17x11x3.8mm

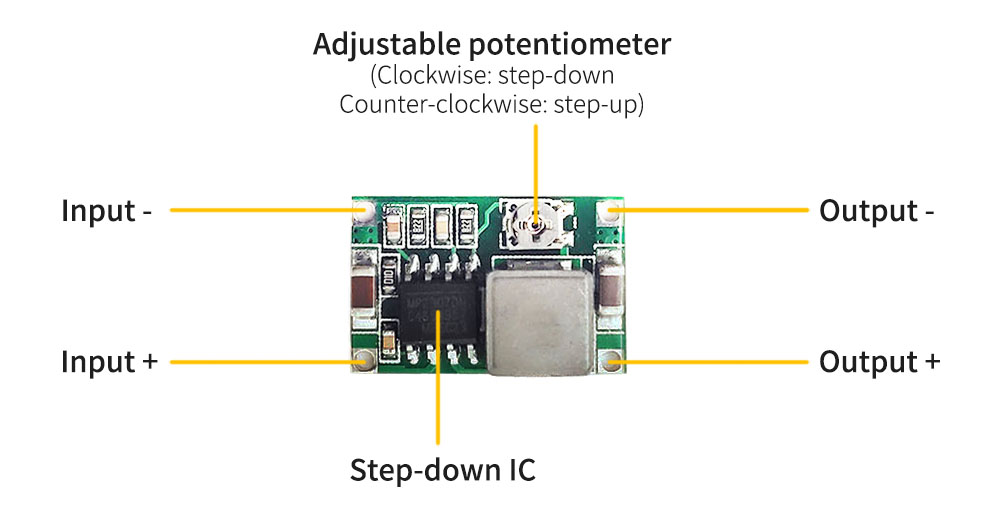

Pinout:

pinout


Reference:
