DC-DC Adjustable Step-Down Convertor 5A/75W with Digital Display

Input range of 4V to 38V with a maximum current up to 5A. Digital display shows datas.
$7.49
Availability: In stock
SKU
2050005
  • Buy 5 for $6.74 each and save 10%
  • Buy 10 for $6.37 each and save 15%
  • Buy 50 for $5.99 each and save 20%

The convertor has a wide input range of 4V to 38V with a maximum current up to 5A. At the same time, a digital display on the board can show the current input or output voltage.


Features:

  • • Voltage input: 4~38V
  • • Voltage output: 1.25~36V
  • • Output Current: 5A (Max 75W)
  • • Output voltage display
  • • Conversion efficiency: 96% (Max)
  • • Size: 66x39x18mm
  • • Weight: 28g

How to Use:

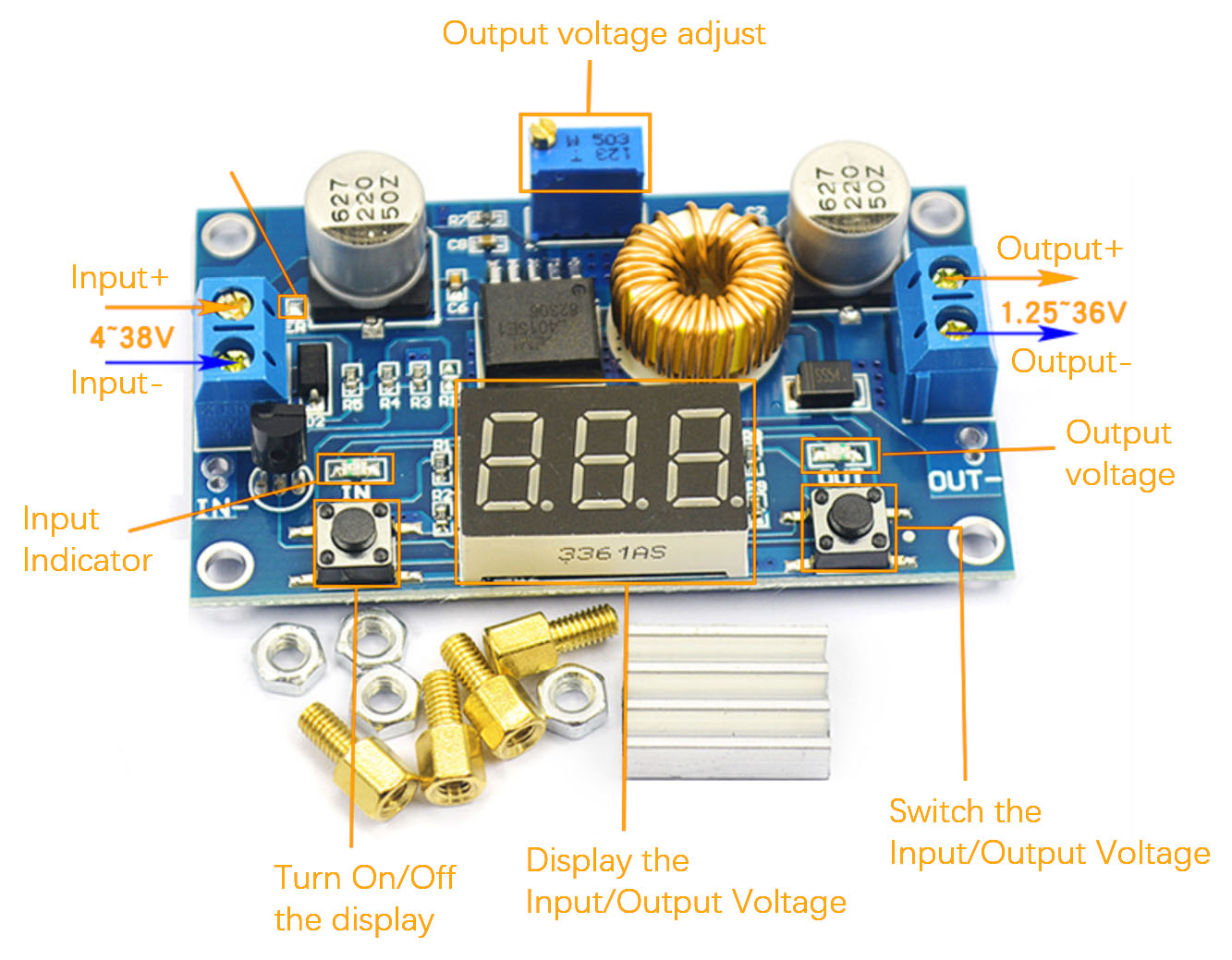

Hardware overview

Clockwise: step-up, counterclockwise: step-down

NOTE: The input voltage should be 1.5V higher than the input voltage.


Reference:

  • • Tech-support: support@longan-labs.cc
