ESP8266 Module - ESP12-F

$4.99
Availability: In stock
SKU
2040008
  • Buy 5 for $4.49 each and save 10%
  • Buy 10 for $4.24 each and save 15%
  • Buy 50 for $3.99 each and save 20%

The module is based on the ESP8266 chip. The module inherits the transparent transmission function, which is ready to use, supports serial AT command. Users can achieve network access through the serial port, the module is widely used in smart home, home security, remote control, automotive electronics, smart lighting, and industrial Internet of Things.


Application Idea

  • • Industrial manufacturing
  • • Smart home
  • • Smart Farm
  • • IoT

Specification

Item

Value

Description

Size

24x16x3mm

±0.2mm

SPI Flash

32Mbit



Interface

/

UART/GPIO/ADC/PWM

GPIO

9



Baud rate

115200

Support 300~4608000bps

Frequency

2.4GHz

2412~2482MHz

Antenna

On board

Distance: 100m

Transmit Power

16±2dBm

802.11b/g/n

Safety

WEP/WPA-PSK/WPA2-PSK



Power Supply

3.3V



Working Temperature

-20~85℃



Certification

FCC/CE/IC/NCC/TELEC/REACH/RoHs/SRRC

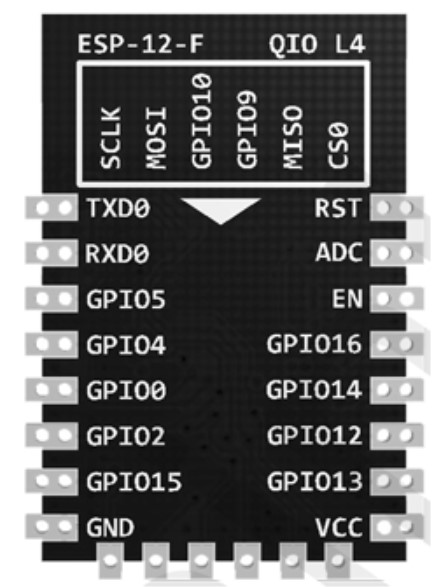

Pinout


Pin

Name

Description

1

RST

Reset

2

ADC

ADC input, input range 0~1V, 10 bit

3

EN

Chip select, HIGH enable

4

IO16

GPIO16, Connect to RST as deep sleep awake pin

5

IO14

GPIO14, HSPI_CLK

6

IO12

GPIO12, HSPI_MISO

7

IO13

GPIO13, HSPI_MOSI; UART0_CTS

8

VCC

3.3V

9

GND

Ground

10

IO15

GPIO15, MTDO; HSPICS; UART0_RTS

11

IO2

GPIO2, UART1_TXD

12

IO0

GPIO0, uploading mode: LOW, Running mode: HIGH or draft

13

IO4

GPIO4

14

IO5

GPIO5, IR_R

15

RXT

UART_RXD; GPIO13

16

TXD

UART0_TXD; GPIO1
