ESP8266 Module - ESP-01S

$2.89
Availability: In stock
SKU
2040007
  • Buy 5 for $2.60 each and save 10%
  • Buy 10 for $2.46 each and save 15%
  • Buy 50 for $2.31 each and save 20%

The module is based on the ESP8266 chip. The module inherits the transparent transmission function, which is ready to use, supports serial AT command. Users can achieve network access through the serial port, the module is widely used in smart home, home security, remote control, automotive electronics, smart lighting, and industrial Internet of Things.


Application Idea:

  • • Industrial manufacturing
  • • Smart home
  • • Smart Farm
  • • IoT


Specification:

Item

Value

Description

Size

24.7x14.4x11mm

±0.2mm

SPI Flash

8Mbit



Interface

/

UART/GPIO

GPIO

2



Baud rate

115200

Support 300~4608000bps

Frequency

2.4GHz

2412~2482MHz

Antenna

On board

2dBi

Transmit Power

16±2dBm

802.11b/g/n

Safety Certificate

WEP/WPA-PSK/WPA2-PSK



Power Supply

3.3V



Working Temperature

-20~85℃

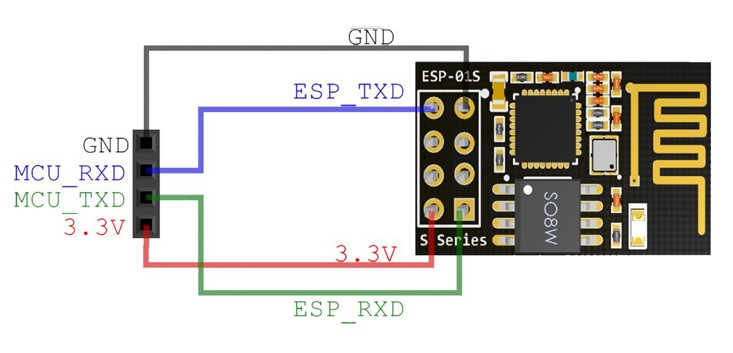

 Hardware Connection:
