HC-SR501 PIR Motion Sensor

An automatic control module based on infrared technology.
$2.49
Availability: In stock
SKU
2030003
  • Buy 5 for $2.24 each and save 10%
  • Buy 10 for $2.12 each and save 15%
  • Buy 50 for $1.99 each and save 20%

The sensor is an automatic control module based on infrared technology. It is with high sensitivity, high reliability and low voltage working mode through LH1788 probe design. And It is widely used in all kinds of automatic induction electrical equipments, especially the automatic control products powered by dry batteries.


Features:

  • • Working voltage: 5~20V
  • • Output voltage: 3.3V
  • • Static working current: 65uA
  • • Delay time: 8~200s
  • • Detect lock time: 2.5s
  • • Detect range: <120°, <7m
  • • Working tempertaure: -15~70℃
  • • Size: 32x24mm

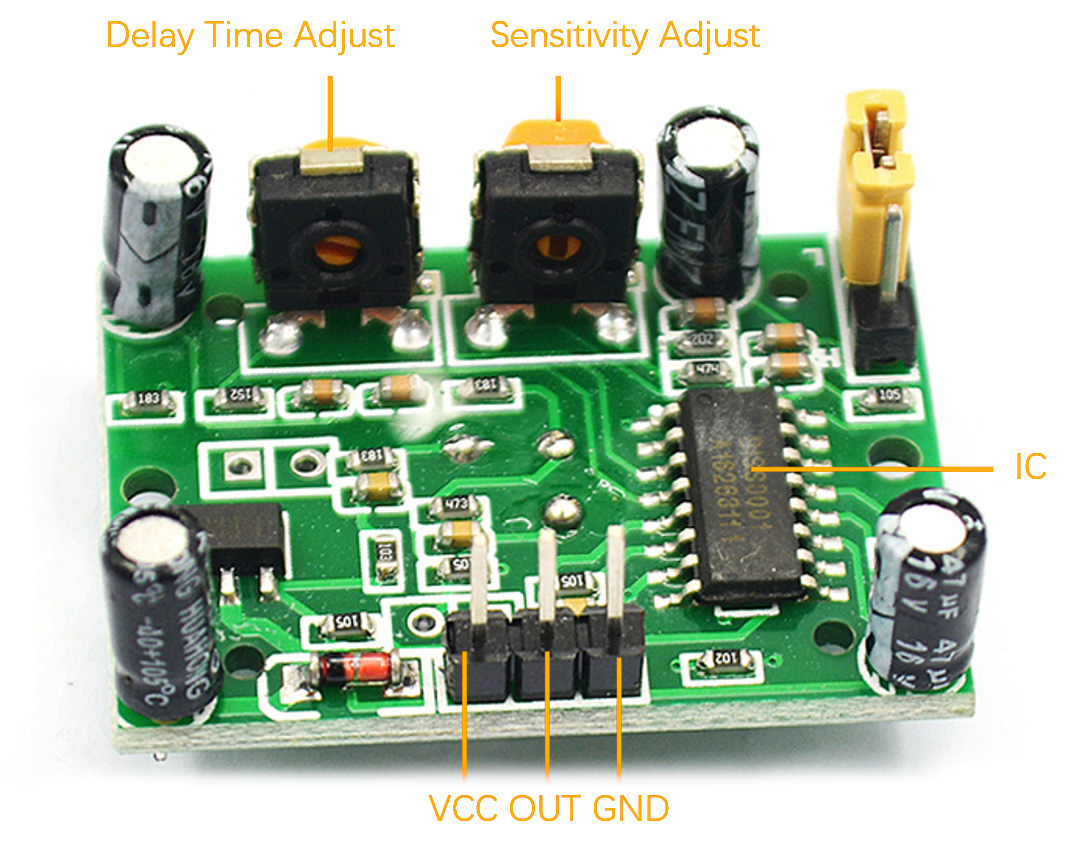

Hardware Overview:

Hardware overview


Reference:

  • • Tech-support: support@longan-labs.cc
