CANBed Dual - Arduino CAN Bus Dual-FD Dev Kit based on RP2040

CANBed Dual is a CAN Bus development board with 2 independent CAN FD interface based on RP2040. RP2040 has 2MB of Flash and 264KB of RAM. The operating frequency is up to 133MHz, which is suitable for most embedded applications.

CANBed Dual uses the GD32E103CBT6 as the CAN controller. There is a Micro USB connector on the board, through which you can program the board or supply power to the board. There are one I2C, one UART, one SPI interface, 3 analog input interfaces and 8 digital IO on the board.

There's a 6PIN Terminal for connecting CAN Bus interface. The voltage input range of the CAN interface is 4.5-28V, which can provide a stable 5V/1A output.

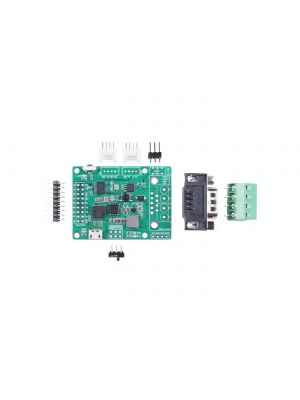

Part List:

• 1.  CANBed Dual PCBA x1
• 2.  6-pin Terminal Connector x1
• 3.  6-pin switch x2
• 4.  9x2 2.54 Header x1
• 5.  3x2 2.54 Header x1

Features:

• ● Powerful Raspberry Pi RP2040 processor
• ● 2 independent CAN FD interface
• ● Up to 5Mb/s CAN FD baudrate
• ● 2x3 pin SPI interface
• ● 2x9 pin IOs pinout
• ● Power input from 4.5~28V

Specifications:

• ● MCU: Raspberry Pi RP2040
• ● Clock Speed: flexible clock running up to 133 MHz
• ● Flash Memory: 2MB
• ● RAM: 264KB
• ● Operate Voltage: 4.5~28V
• ● Operate Current: 1A
• ● Input Interface: Sub-D

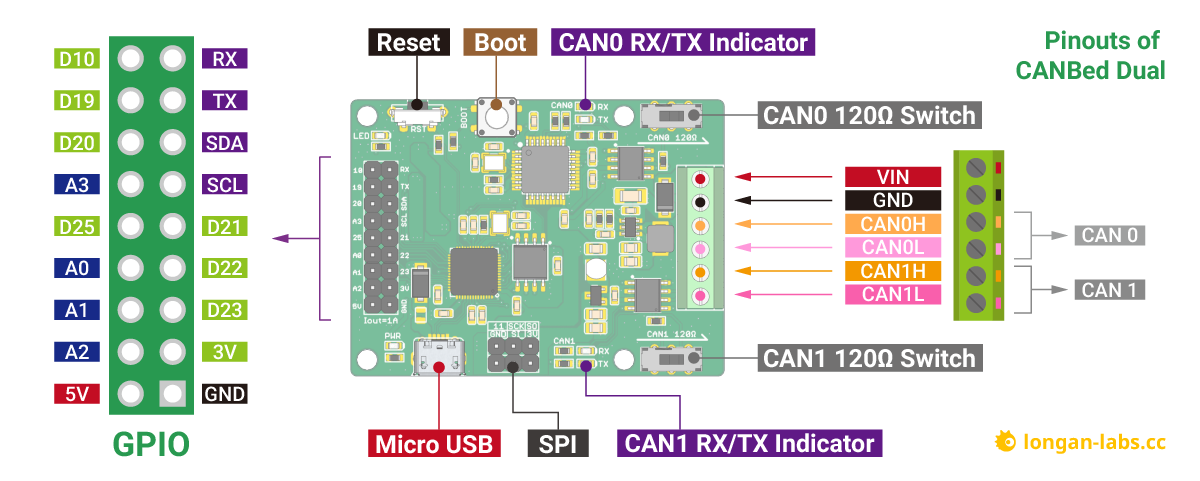

Pinouts:

References:

• ● CANBed Dual Docs
• ● Arduino Library for CANBed Dual
• ● Schematic of CANBed Dual
• ● SketchUp Files of CANBed Series
• ● Raspberry Pi Pico C/C++ SDK
• ● Raspberry Pi Pico Python SDK
• ● Getting Started with Pico
• ● CAN Bus Products - Selection Guide
