CANBed M4 - Arduino CAN Bus Cortex M4 Dev Kit

CAN Bus is a common industrial bus because of its long travel distance, medium communication speed and high reliability. It is commonly found on modern machine tools, such as an automotive diagnostic bus.

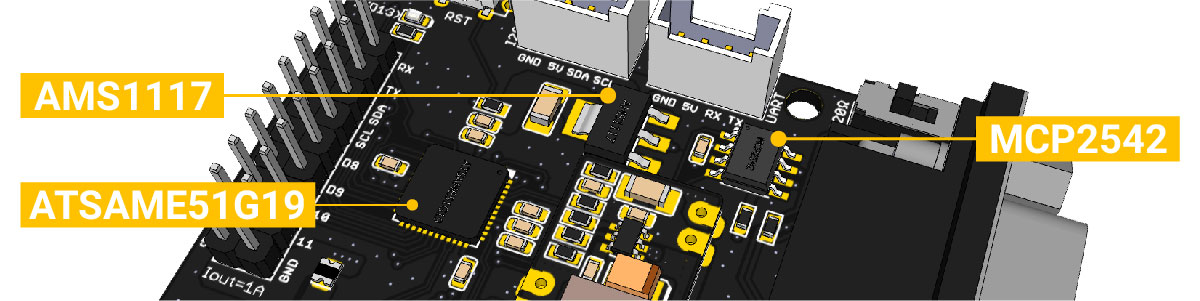

This CANBed M4 is the latest board of the CANBed family, with the ATSAME51G19A mcu and MCP2542FD CAN transceiver to achieve the CAN FD capability. With an OBD-II converter cable added on and the OBD-II library imported, you are ready to build an onboard diagnostic device.

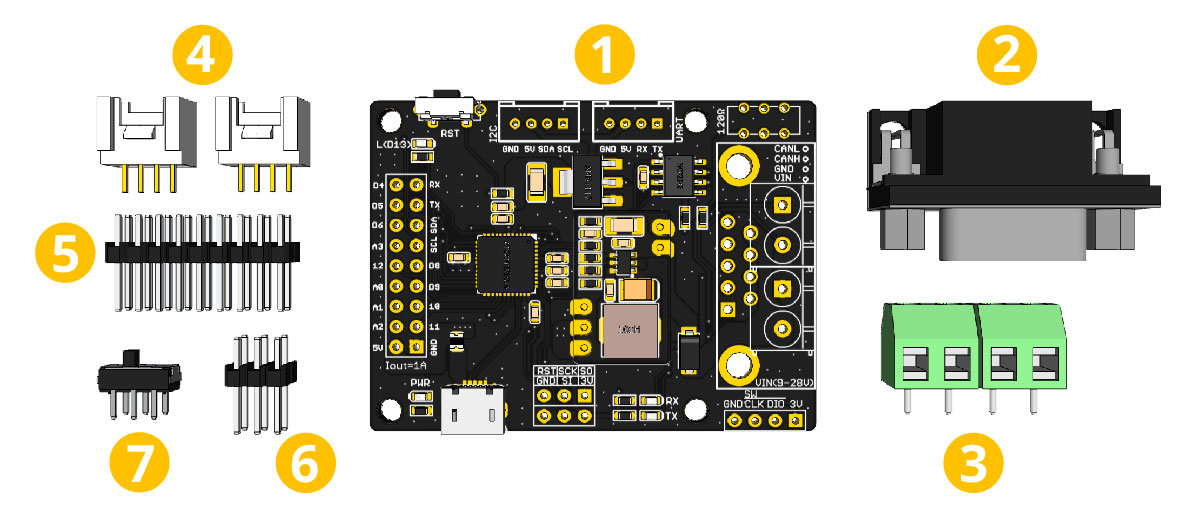

Part List:

• 1.  CANBed M4 PCBA x1
• 2.  Sub-D connector x1
• 3.  4-pin Terminal x1
• 4.  HY2.0 4-pin Connector x2
• 5.  9x2 2.54 Header x1
• 6.  3x2 2.54 Header x1
• 7.  6-pin switch x1

Features:

• ● CAN FD and CAN 2.0
• ● ATSAME51 32bit Cortex M4 core
• ● 512 KB flash, 192KB RAM
• ● 32.768 KHz crystal for RTC
• ● Industrial standard 9 pin sub-D connector or 4PIN Terminal
• ● OBD-II and CAN standard pinout selectable at sub-D connector
• ● 2x4Pin Connector compatable with Grove system
• ● Power input from 7-28V
• ● Size: 56x41mm

Specification:

• ● MCU: ATSAME51 32bit Cortex M4 core
• ● Clock speed: 120MHz
• ● Flash memory: 512KB
• ● RAM 192KB
• ● EEPROM: No EEPROM
• ● Input voltage: 7~28V
• ● Input interface: Sub-D as well as Terminal

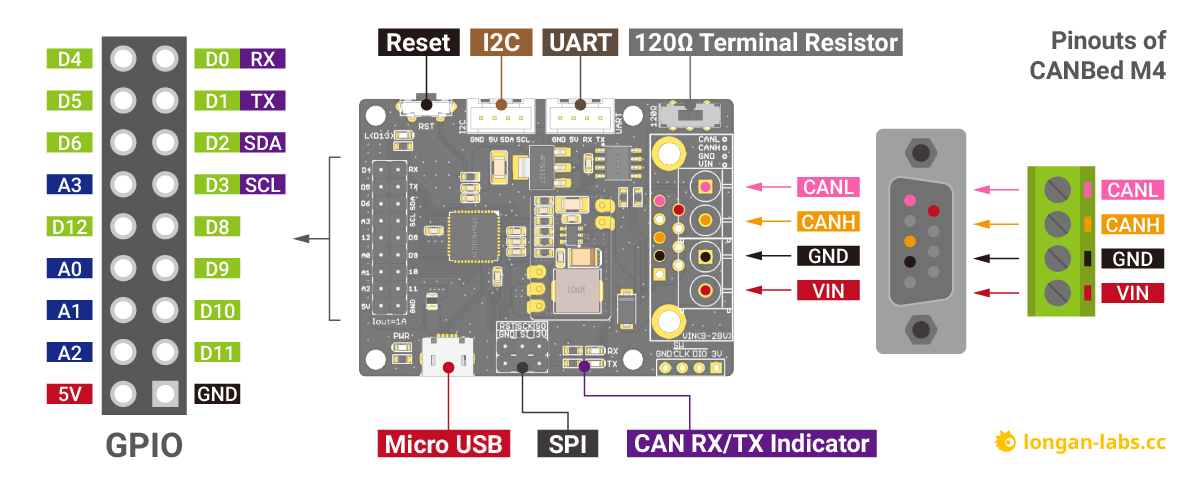

Pinouts:

References:

• ● CANBed M4 Docs
• ● Arduino Library
• ● Hardware Schematics
• ● CAN Bus Products - Selection Guide
